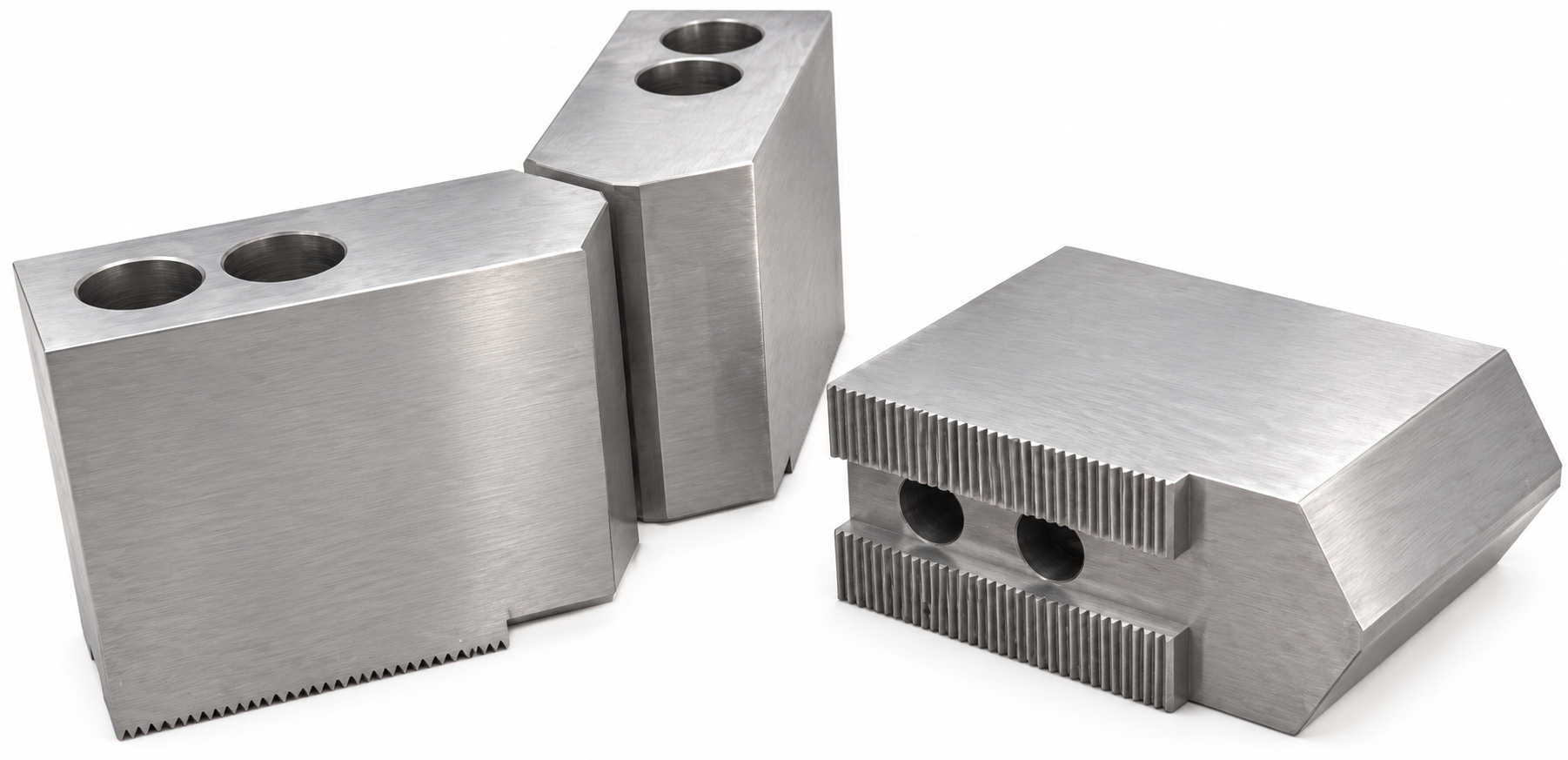

KHF top jaws

The KHF Jaws are made of not hardened steel to enable a quick and simple adaption to the workpiece. The jaws have a serration of 1,5 mm x 60 ° and can be adjusted very variable on the master jaws in diameter.



Aufsatzbacken Spannfutter

Order-No. For chuck L B H Weight kg
per set
K6-32S KHF-165 82 32 32 1,4
K6-60S KHF-165 82 35 60 3,6
K8-40S KHF-210 102 35 40 2,7
K10-42S KHF-250 125 40 42 4,1
K12-50S KHF-315 145 50 50 7,3

 Other materials or dimensions are available on request.
