Drawtube connectors

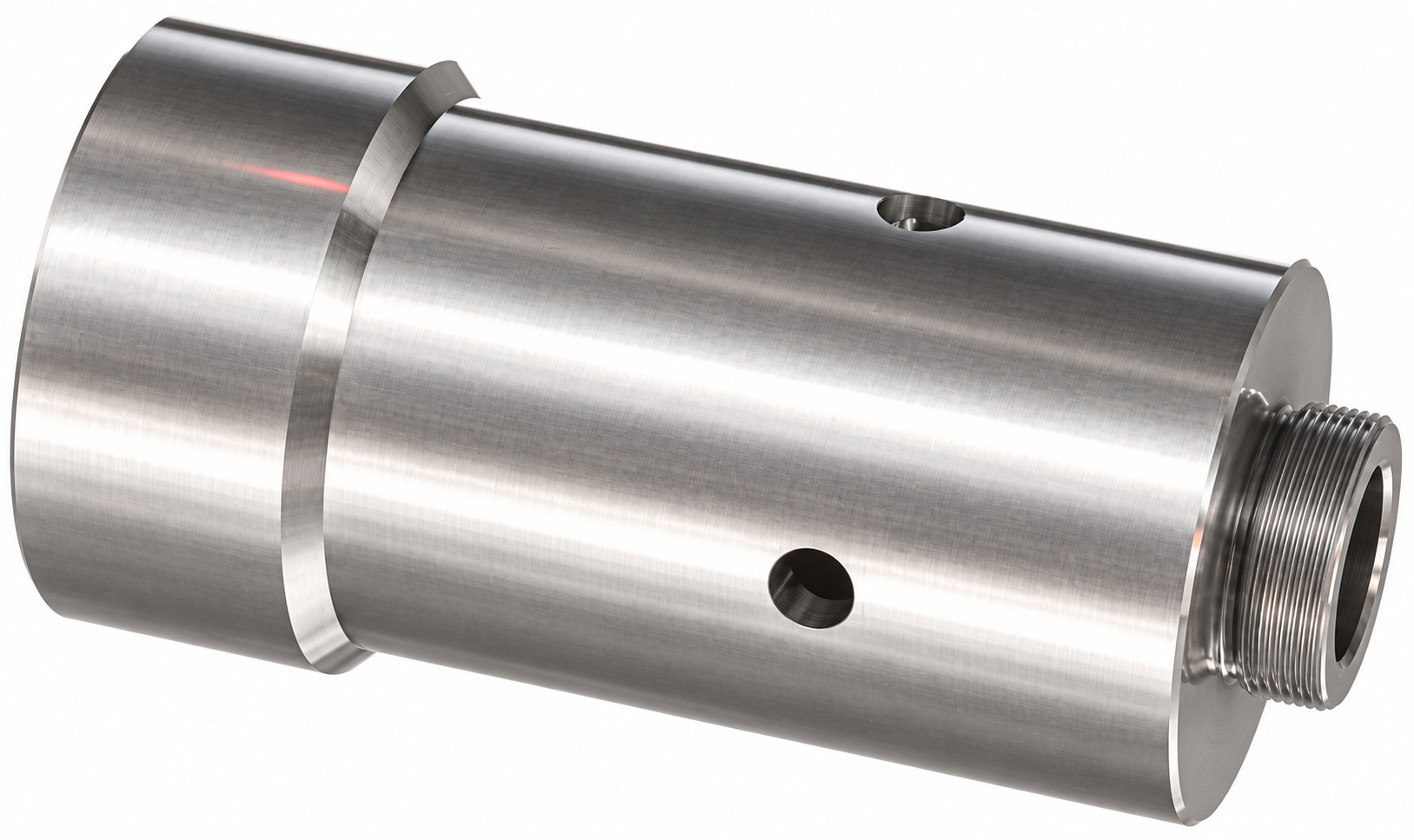

A drawtube connector is used to connect a power operated chucks with the draw tube of the clamping cylinder. The drawtube connector is threaded at one end on the drawtube of the machine. The other end of the adapter is connected to the operating mechanism of the clamping device.

Because there are so many possible axial positions of drawtubes and also depending on the machine size and execution different thread connections, each drawtube connector is designed accordingly to your machine connection.

With your request or your order please let us know the following connecting dimensions of the drawtube:

  • Front end position of the drawtube
  • Rear end position of the drawtube
  • Thread Size on the drawtube
  • Internal or external thread on the drawtube
  • The inner diameter of the drawtube
