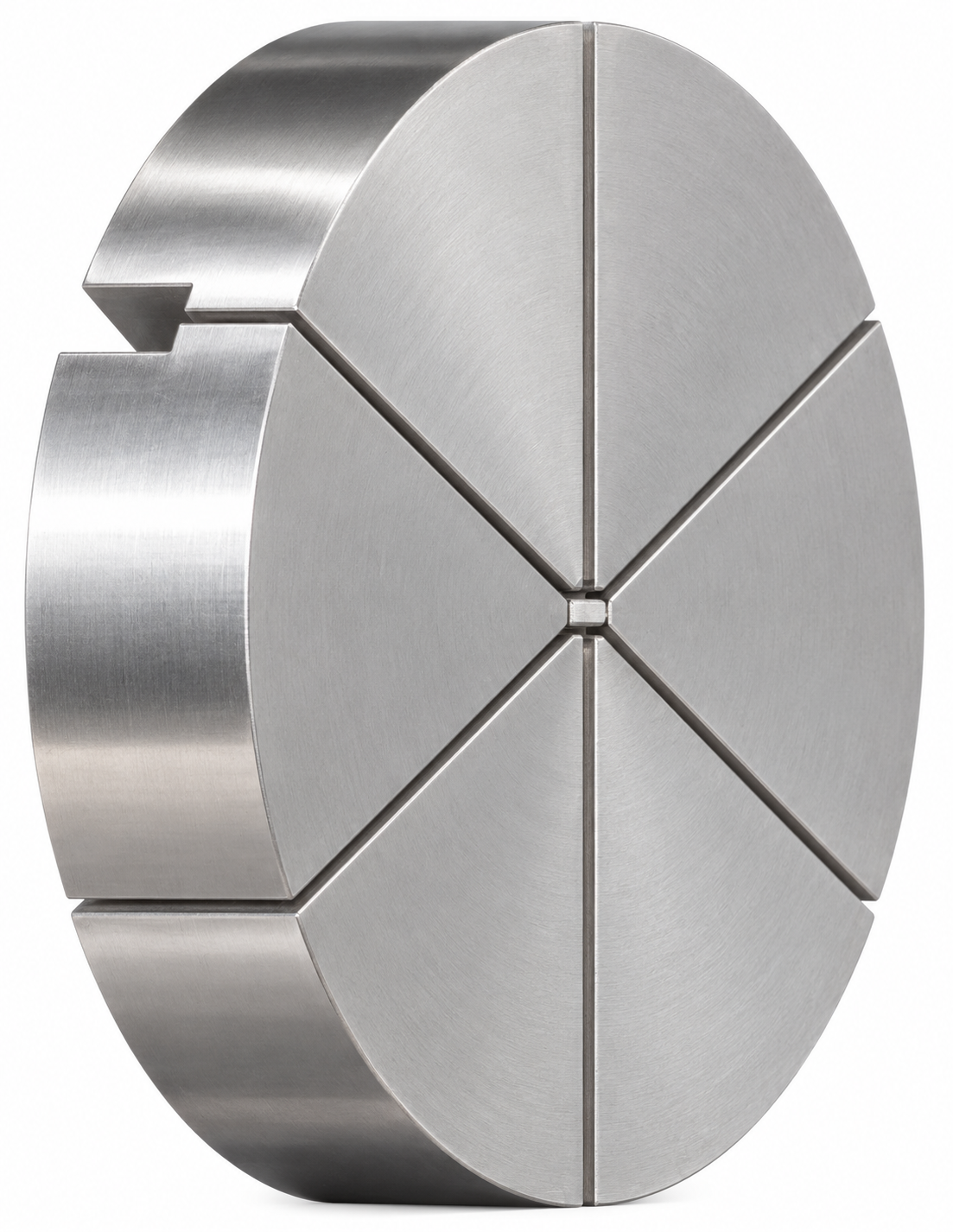

The top jaws SMR got used in association with MMR diaphragms on chucks without through bores (MBS-L, MBS-Z) or vices (MBS-N). The jaws are made of steel and could get hardened inductively. They don't have fastening bores in the clamping range whereby a realization of ideal clamping solutions over the whole clampingdiameter got granted.
| Order-No. | For chuck sizes | D | H | D min. | Weight kg per Set |
| SMR-080-25S | 80 | 60,0 | 25,0 | ||
| SMR-080-38S | 80 | 60,0 | 38,0 | ||
| SMR-100-25S | 100 | 78,0 | 25,0 | ||
| SMR-100-38S | 100 | 78,0 | 38,0 | ||
| SMR-100-50S | 100 | 78,0 | 50,0 | ||
| SMR-125-25S | 125 | 88,0 | 25,0 | ||
| SMR-125-38S | 125 | 88,0 | 38,0 | ||
| SMR-125-50S | 125 | 88,0 | 50,0 | ||
| SMR-150-25S | 150 | 120,0 | 25,0 | ||
| SMR-150-38S | 150 | 120,0 | 38,0 | ||
| SMR-150-50S | 150 | 120,0 | 50,0 | ||
| SMR-200-38S | 200 | 160,0 | 38,0 | ||
| SMR-200-50S | 200 | 160,0 | 50,0 | ||
| SMR-200-75S | 200 | 160,0 | 75,0 | ||
| SMR-250-38S | 250 | 190,0 | 38,0 | ||
| SMR-250-50S | 250 | 190,0 | 50,0 | ||
| SMR-250-75S | 250 | 190,0 | 75,0 | ||
| SMR-300-38S | 300 | 232,0 | 38,0 | ||
| SMR-300-50S | 300 | 232,0 | 50,0 | ||
| SMR-300-75S | 300 | 232,0 | 75,0 |

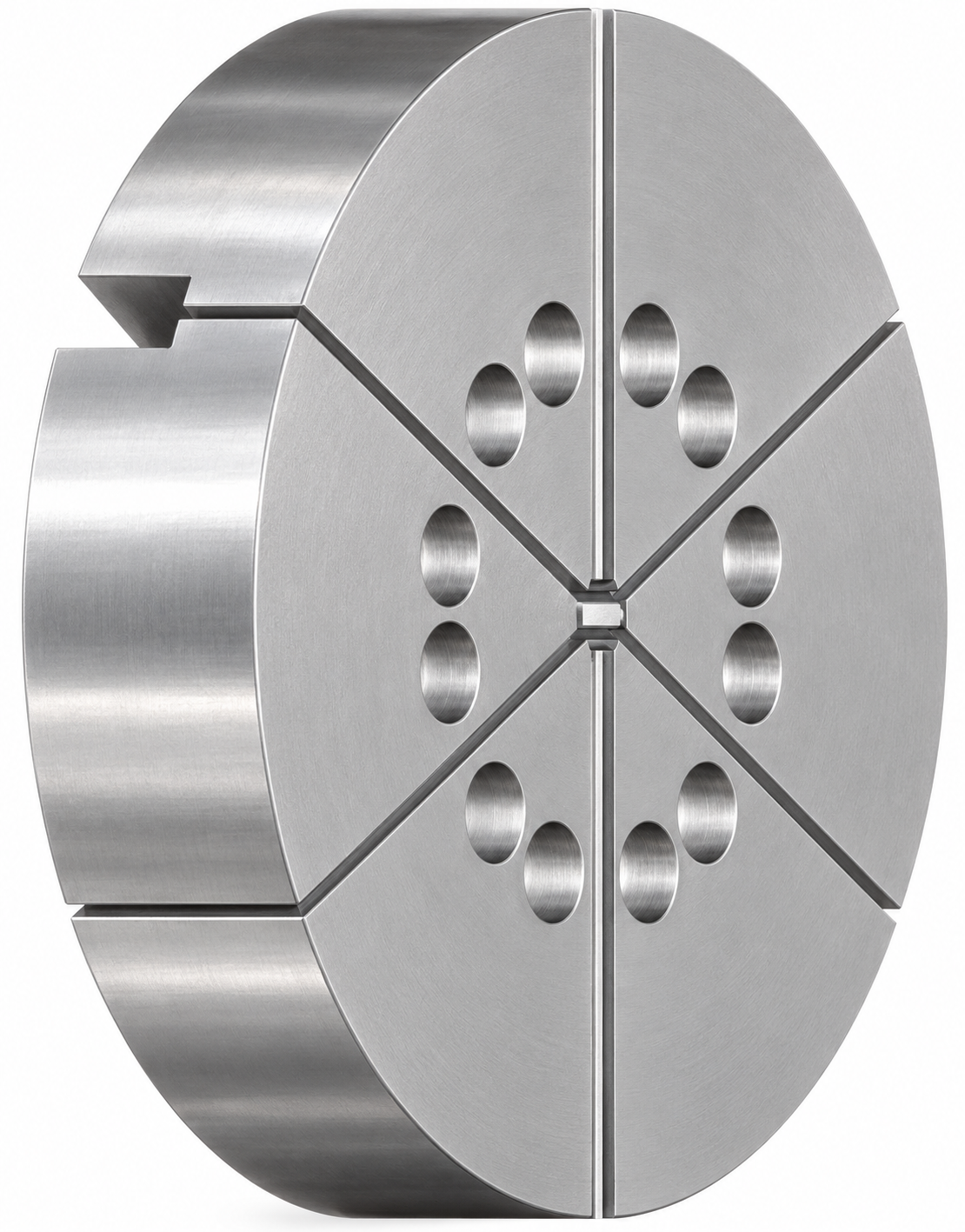

The top jaws SMK got used in association with MMK diaphragms on chucks without through bores (MBS-L, MBS-Z) or vices (MBS-N). The jaws are made of steel and could get hardened inductively. The top jaws got screwd in from the front on the diaphragms, this grants a fast change-over of the top jaws.
| Order-No. | For chuck sizes | D | H | D min. | Weight kg per Set |
| SMK-080-25S | 80 | 60,0 | 25,0 | ||
| SMK-080-38S | 80 | 60,0 | 38,0 | ||
| SMK-100-25S | 100 | 78,0 | 25,0 | ||
| SMK-100-38S | 100 | 78,0 | 38,0 | ||
| SMK-100-50S | 100 | 78,0 | 50,0 | ||
| SMK-125-25S | 125 | 88,0 | 25,0 | ||
| SMK-125-38S | 125 | 88,0 | 38,0 | ||
| SMK-125-50S | 125 | 88,0 | 50,0 | ||
| SMK-150-25S | 150 | 120,0 | 25,0 | ||
| SMK-150-38S | 150 | 120,0 | 38,0 | ||
| SMK-150-50S | 150 | 120,0 | 50,0 | ||
| SMK-200-38S | 200 | 160,0 | 38,0 | ||
| SMK-200-50S | 200 | 160,0 | 50,0 | ||
| SMK-200-75S | 200 | 160,0 | 75,0 | ||
| SMK-250-38S | 250 | 190,0 | 38,0 | ||
| SMK-250-50S | 250 | 190,0 | 50,0 | ||
| SMK-250-75S | 250 | 190,0 | 75,0 | ||
| SMK-300-38S | 300 | 232,0 | 38,0 | ||
| SMK-300-50S | 300 | 232,0 | 50,0 | ||
| SMK-300-75S | 300 | 232,0 | 75,0 |
The top jaws SDR got used in association with MDR diaphragms on chucks with through bores (MBS-DL, MBS-DZ). The jaws are made of steel and could get hardened inductively. They don't have fastening bores in the clamping range whereby a realization of ideal clamping solutions over the whole clampingdiameter got granted.
| Order-No. | For chuck sizes | D | H | D min. | Weight kg per Set |
| SDR-125-25S | 125 | 88,0 | 25,0 | ||
| SDR-125-38S | 125 | 88,0 | 38,0 | ||
| SDR-125-50S | 125 | 88,0 | 50,0 | ||
| SDR-150-25S | 150 | 120,0 | 25,0 | ||
| SDR-150-38S | 150 | 120,0 | 38,0 | ||
| SDR-150-50S | 150 | 120,0 | 50,0 | ||
| SDR-200-38S | 200 | 160,0 | 38,0 | ||
| SDR-200-50S | 200 | 160,0 | 50,0 | ||
| SDR-200-75S | 200 | 160,0 | 75,0 | ||
| SDR-250-38S | 250 | 190,0 | 38,0 | ||
| SDR-250-50S | 250 | 190,0 | 50,0 | ||
| SDR-250-75S | 250 | 190,0 | 75,0 | ||
| SDR-300-38S | 300 | 232,0 | 38,0 | ||
| SDR-300-50S | 300 | 232,0 | 50,0 | ||
| SDR-300-75S | 300 | 232,0 | 75,0 |
