Diaphragm chuck MBS-DL

The MBS-DL chuck series is a pneumatic operated chuck with a built in air cylinder and through bore.For actuation of the chuck, compressed air got supplied via an air tube version 50 to the adapterplate and will be transfered from there to the chuck. By reason of variation of the air pressure, workpieces could get clamped very sensitive and non-deforming according to several cases of applications, also with higher clamping forces. With the MBS-DL chuck associated with a clamping set, a high precise clamping got realized. Further it is possible, to use clamping sets for different workpieces which are requirering high accuracies.

durchlass membranfutter

Specifications:

Order-No. Accuracy µm Jaw stroke
ø mm*
Clamping force daN** R.p.m. max*** Weight kg
MBS-DL-125 2,0 1,6 300 9.700
MBS-DL-150 2,0 1,6 480 9.400
MBS-DL-200 2,0 1,6 1.130 7.900
MBS-DL-250 2,0 1,6 2.090 6.300
MBS-DL-300 2,0 1,6 3.640 5.000
  • * Jaw stroke on diameter with 38 mm high top jaws
  • ** Clamping force at 6 bar air pressure
  • *** Max. rpm is influenced by the weight of top jaws

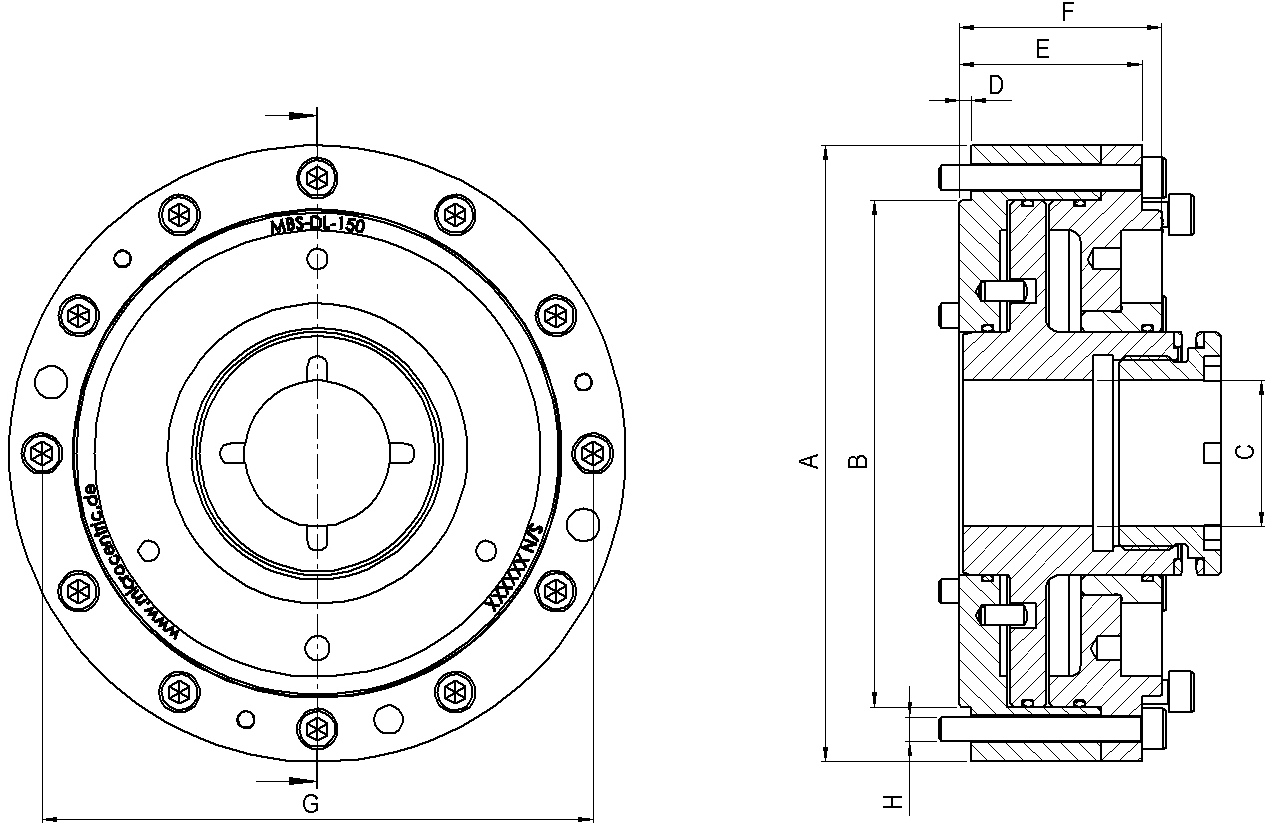

mbs dl mass

Dimensions:

Order-No. A B C D E F G H
MBS-DL-125 127,0 100,00 30,0 3,0 47,00 52,0 112,0 M6
MBS-DL-150 152,0 124,97 36,0 3,0 45,00 50,0 135,9 M6
MBS-DL-200 204,0 167,64 52,0 3,2 58,75 64,3 182,9 M10
MBS-DL-250 254,0 215,90 66,0 4,7 83,00 89,0 233,7 M10
MBS-DL-300 294,0 247,65 95,0 4,7 83,00 89,3 266,7 M10

Features:

  • Sizes from 125 to 300 mm
  • Through bore
  • Highest process reliability
  • Short set-up time
  • Stepless adjustable clamping force, also during the turning
  • Standard accuracy 2 µm
  • Changeover of diameter less than 3 µm
  • No servicing required
  • Long durability
  • No disclosed guides
  • Solid against dirt
  • Nearly wear-free
  • Centrifugal force consistent
  • Max. 9.700 rpm

Delivery contents:

  • Chuck body assembly MBS-DL
  • Instruction manual

Required for use:

  • Diaphragm MDR
  • Top jaws SDR
  • Adpater plate
  • Air tube version 50
  • Control unit BE-2 or 5/3-directional valve for actuation
  • Air filter regulator lubricator for air conditioning and pressure adjustment
