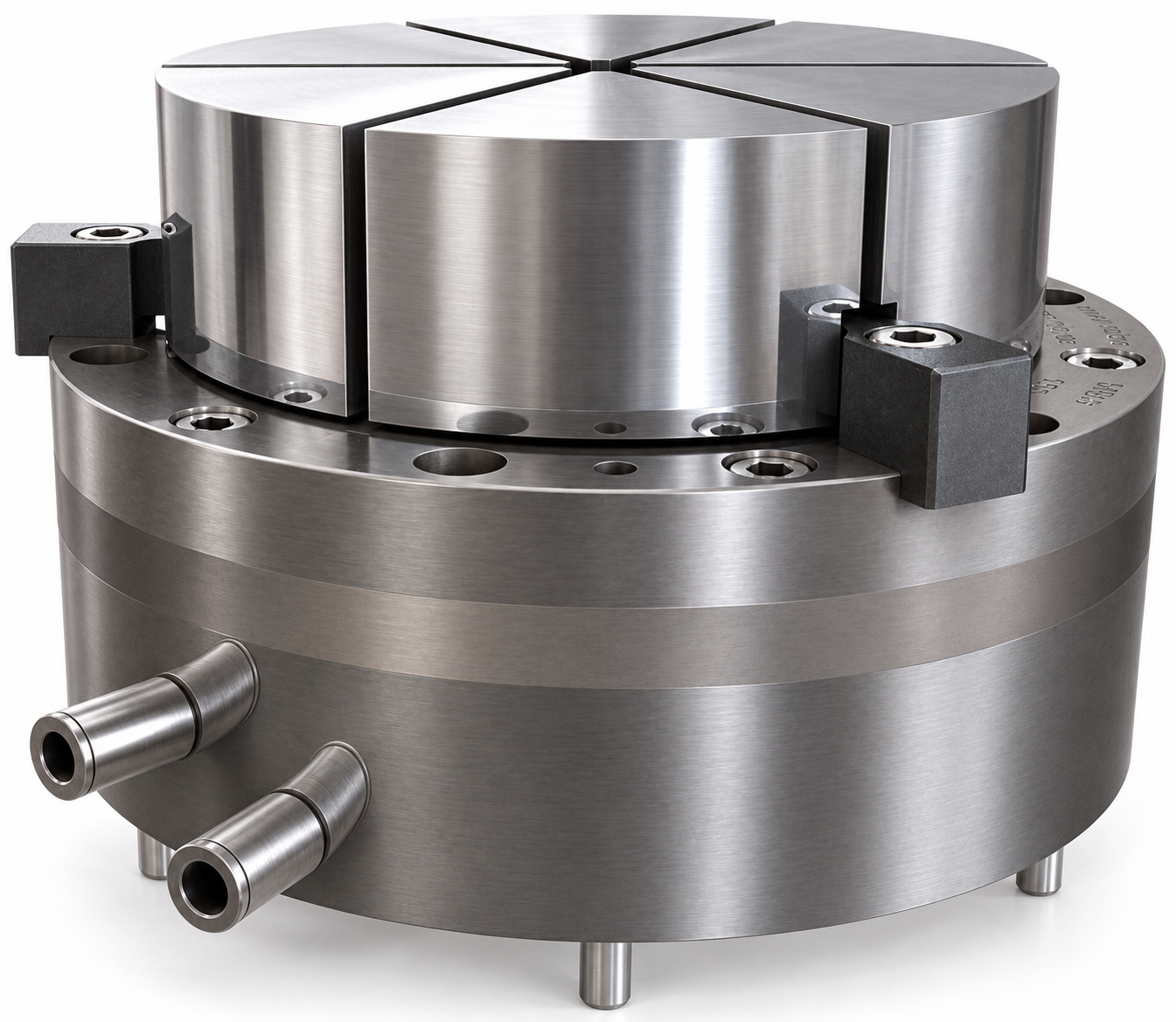

Diaphragm vice MBS-N

The MBS-N vice series is a pneumatic operated vice with a built in air cylinder and coolant through the middle. For actuation of the chuck, compressed air got supplied via fittings to the cylinder. By reason of variation of the air pressure, workpieces could get clamped very sensitive and non-deforming according to several cases of applications, also with higher clamping forces. With the MBS-N vice associated with a clamping set, a high precise clamping got realized. Further it is possible, to use clamping sets for different workpieces which are requirering high accuracies.

Membranfutter als Spannstock

Specifications:

Order-No. Accuracy Jaw stroke
ø mm*
Clamp.-force
daN**
Weight kg
MBS-N-080 2,0 1,6 50
MBS-N-100 2,0 1,6 120
MBS-N-125 2,0 1,6 300
MBS-N-150 2,0 1,6 480
MBS-N-200 2,0 1,6 1.130
MBS-N-250 2,0 1,6 2.090
MBS-N-300 2,0 1,6 3.640
  • * Jaw stroke on diameter with 38 mm high top jaws
  • ** Clamping force at 6 bar air pressure

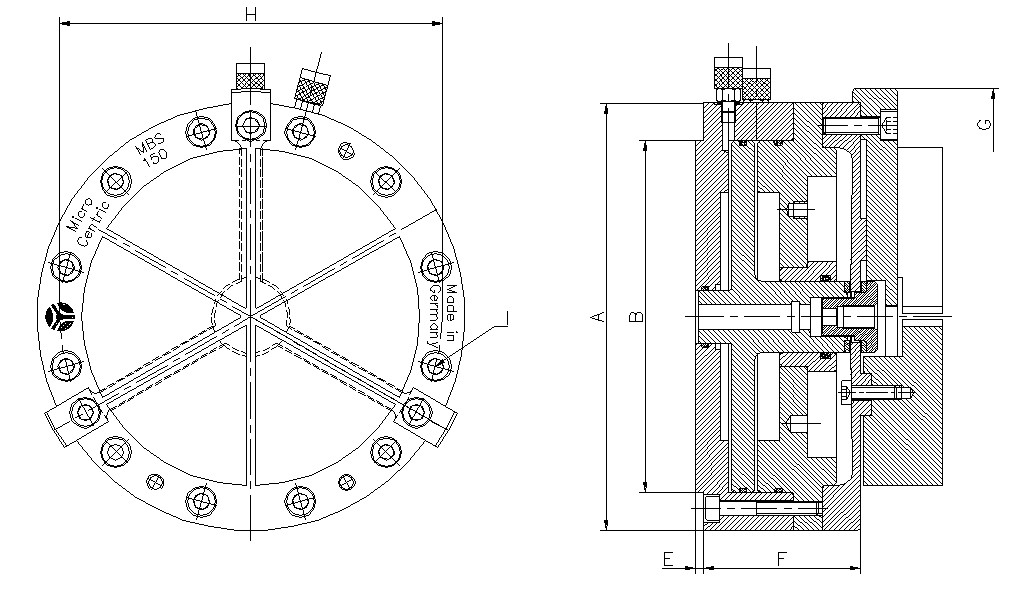

Dimensions:

Order-No. A B C D E F G H I
MBS-N-080 81,0 50,80 19,0 13,0 1,5 45,0 89,0 69,9 M5
MBS-N-100 102,0 82,52 19,0 12,0 1,5 56,0 110,0 88,9 M5
MBS-N-125 127,0  100,00 19,0 8,7 3,0 58,0 136,0 112,0 M6
MBS-N-150 152,0 124,97 19,0 10,5 3,0 55,7 162,0 135,9 M6
MBS-N-200 204,0 167,64 19,0 9,4 3,2 61,0 214,0 182,9 M10
MBS-N-250 254,0 215,90 19,0 5,0 4,7 87,0 264,0 233,7 M10
MBS-N-300 294,0 247,65 19,0 0,0 4,7 98,3 306,0 266,7 M10

Features:

  • Sizes from 80 to 300 mm
  • Highest process reliability
  • Short set-up time
  • Stepless adjustable clamping force
  • Standard accuracy 2µm
  • Changeover of diameter less than 3 µm
  • No servicing required
  • Long durability
  • No disclosed guides
  • Solid against dirt
  • Nearly wear-free
  • Compatible to MicroCentric jawchucks
  • Internal coolant conveyance as standard

Delivery contents:

  • Chuck body assembly MBS-N
  • Instruction manual

Required for use:

  • Diaphragm MMK / MMR
  • Top jaws SMK / SMR
  • Bedplate
  • Control unit BE-2 or 5/3-directional valve for actuation
  • Air filter regulator lubricator for air conditioning and pressure adjustment
