MBS-L

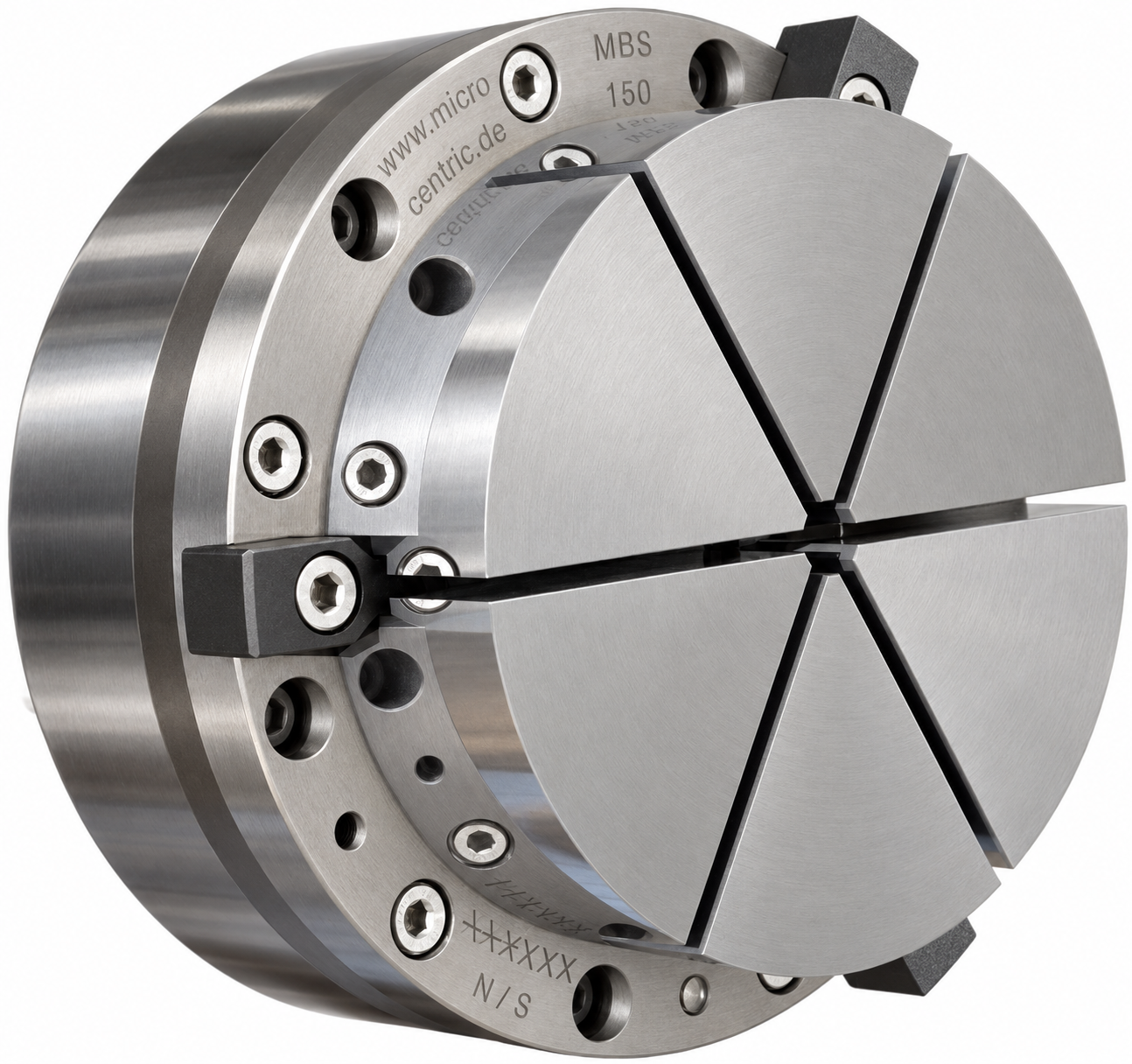

Diaphragm chuck MBS-L

The MBS-L chuck series is a pneumatic operated chuck with a built in air cylinder and coolant through the middle. For actuation of the chuck, compressed air got supplied via an air tube version 50. By reason of variation of the air pressure, workpieces could get clamped very sensitive and non-deforming according to several cases of applications, also with higher clamping forces. With the MBS-L chuck associated with a clamping set, a high precise clamping got realized. Further it is possible, to use clamping sets for different workpieces which are requirering high accuracies.

MBS-L

Specifications:

Order-No. Accuracy Jaw stroke
ø mm*		 Clamp.-force
daN**		 Max. rpm*** Weight kg
MBS-L-080 2,0 1,6 50 11.000 1,35
MBS-L-100 2,0 1,6 120 10.000  2,00
MBS-L-125 2,0 1,6 300 9.700  3,90
MBS-L-150 2,0 1,6 480 9.400  5,50
MBS-L-200 2,0 1,6 1.130 7.900  11,20
MBS-L-250 2,0 1,6 2.090 6.300  26,00
MBS-L-300 2,0 1,6 3.640 5.000  38,00
  • *  Jaw stroke on diameter with 38 mm high top jaws
  • ** Clamping force at 6 bar air pressure
  • *** Max. rpm is influenced by the weight of top jaws

mbs l 01

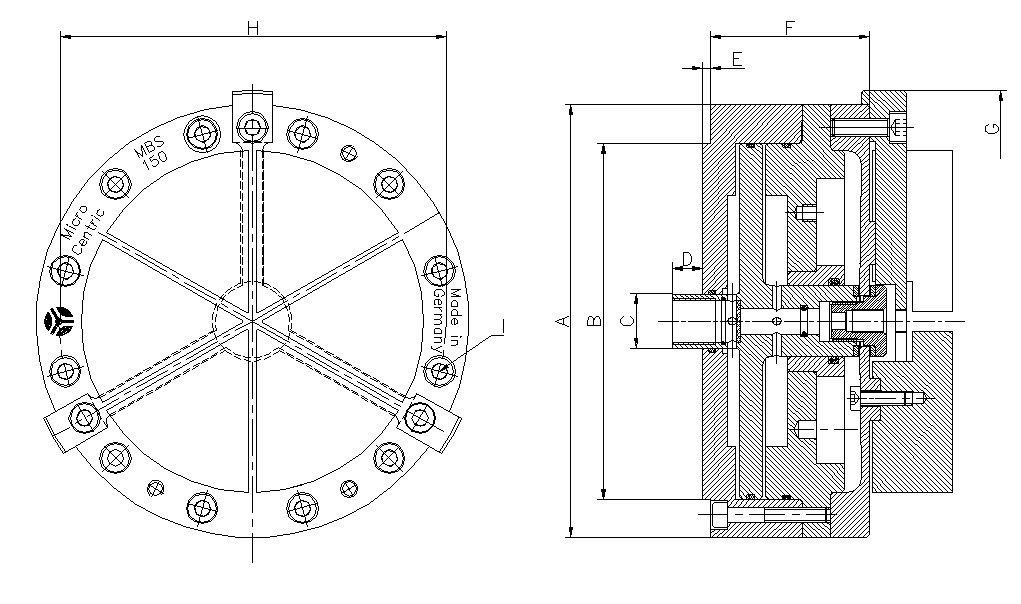

Dimensions:

Order-No. A B C D E F G H I
MBS-L-080 81,0 50,80 19,0 12,7 1,5 45,0 89,0 69,9 M5
MBS-L-100 102,0 82,52 19,0 12,7 1,5 56,0 110,0 88,9 M5
MBS-L-125 127,0  100,00 19,0 9,95 3,0 58,0 136,0 112,0 M6
MBS-L-150 152,0 124,97 19,0 11,7 3,0 55,7 162,0 135,9 M6
MBS-L-200 204,0 167,64 19,0 11 3,2 61,0 214,0 182,9 M10
MBS-L-250 254,0 215,90 19,0 7,1 4,7 87,0 264,0 233,7 M10
MBS-L-300 294,0 247,65 19,0 1,55 4,7 98,3 306,0 266,7 M10

Features:

  • Sizes from 80 to 300 mm
  • Highest process reliability
  • Short set-up time
  • Stepless adjustable clamping force, also during the turning
  • Standard accuracy 2µm
  • Changeover of diameter less than 3 µm
  • No servicing required
  • Long durability
  • No disclosed guides
  • Solid against dirt
  • Nearly wear-free
  • Centrifugal force consistent
  • Max. 11.000 rpm
  • Compatible to MicroCentric jawchucks
  • Internal coolant conveyance as standard

Delivery contents:

  • Chuck body assembly MBS-L
  • Instruction manual

Required for use:

  • Diaphragm MMK / MMR
  • Top jaws SMK / SMR
  • Part stop stpider ASS or part stop seat ATR
  • Adpater plate
  • Air tube version 50
  • Control unit BE-2 or 5/3-directional valve for actuation
  • Air filter regulator lubricator for air conditioning and pressure adjustment
