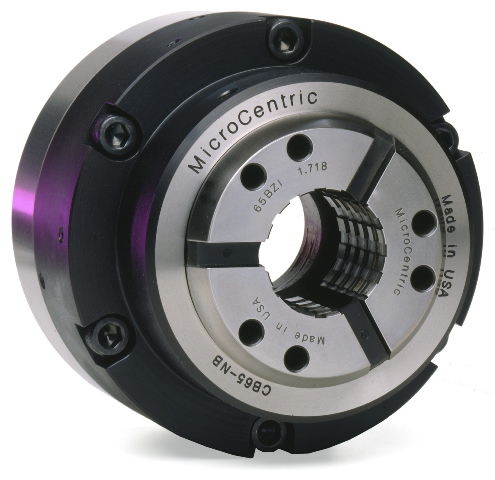

At the chuck series CB-NB the collets are engaged directly in the drawtube connector. Through the operation of the clamping cylinder the drawtube moves axially backward. Thereby the collet is pulled into the cone of the chuck body and result is a radial clamping movement with simultaneous pull down effect on the workpiece.
| Chuck type | Through bore mm | Clamping range mm | Drawtube stroke mm | Drawtube force max. daN | Clamping force max. daN | Max. Speed rpm. | Weight kg |
| CB42-NB | 42,0 | +/- 0,5 | 4 | 3.580 | 6.425 | 6.000 | 7,6 |
| CB65-NB | 66,0 | +/- 0,5 | 4 | 4.590 | 8.260 | 6.000 | 10,9 |
| CB80-NB | 82,5 | +/- 0,5 | 4 | 5.450 | 9.820 | 5.000 | 15,9 |
| CB100-NB | 100,0 | +/- 1,0 | 7 | 6.630 | 11.930 | 4.500 | 21,8 |
| CB120-NB | 120,0 | +/- 1,0 | 7 | 6.960 | 12.530 | 4.000 | 33,0 |
| CB140-NB | 140,0 | +/- 1,0 | 7 | 7.310 | 13.150 | 4.000 | 40,5 |

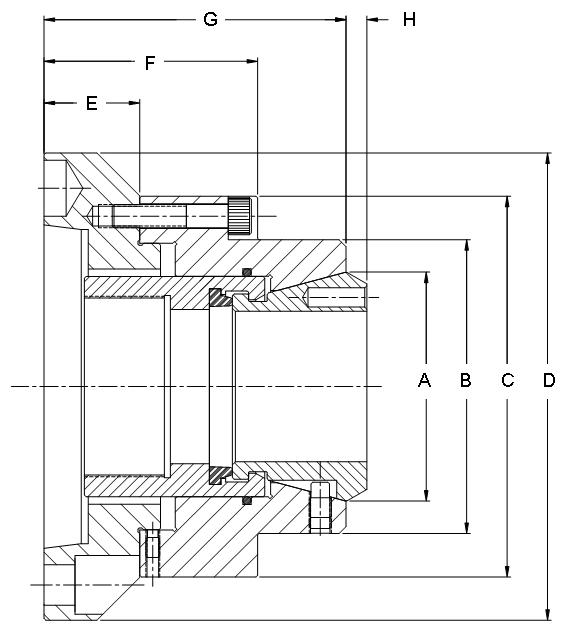

| Order-No. | A | B | C | D | E | F | G | H |
| CB42-NB/140 | 78,6 | 108,0 | 144,8 | 144,8 | 52,1 | 52,1 | 102,9 | 9,0 |
| CB42-NB/A5 | 78,6 | 108,0 | 144,8 | 144,8 | 62,2 | 62,2 | 113,0 | 9,0 |
| CB42-NB/A6 | 78,6 | 108,0 | 144,8 | 164,6 | 25,4 | 59,7 | 110,5 | 9,0 |
| CB65-NB/A5 | 98,7 | 127,0 | 164,6 | 164,6 | 71,1 | 71,1 | 109,2 | 9,0 |
| CB65-NB/A6 | 98,7 | 127,0 | 164,6 | 164,6 | 85,1 | 85,1 | 123,2 | 9,0 |
| CB65-NB/A8 | 98,7 | 127,0 | 164,6 | 209,6 | 41,3 | 92,1 | 130,2 | 9,0 |
| CB80-NB/A6 | 114,3 | 149,2 | 195,6 | 195,6 | 75,1 | 75,1 | 125,9 | 4,6 |
| CB80-NB/A8 | 114,3 | 149,2 | 195,6 | 233,7 | 28,1 | 81,5 | 132,3 | 4,6 |
| CB100-NB/A8 | 144,8 | 177,8 | 237,5 | 237,5 | 86,6 | 86,6 | 122,2 | 1,0 |
| CB100-NB/A11 | 144,8 | 177,8 | 237,5 | 278,1 | 50,8 | 107,9 | 143,5 | 1,0 |
| CB120-NB/A11 | 180,0 | 227,3 | 278,1 | 278,1 | 91,7 | 91,7 | 148,8 | 3,0 |
| CB140-NB/A11 | 195,6 | 252,7 | 303,5 | 303,5 | 91,7 | 91,7 | 148,8 | 3,0 |
At the chuck designation the adapter plate size is given after the slash:
Other adapter plate sizes are available on request
