Quick change collet vice CB-NRD, axially fixed collets

At the Vice series CB-NRD the collets are coupled into the chuck body. At operation of the integrated clamping cylinder the piston moves axially forward. Thereby a sliding sleeve with cone is moving forward and result is a radial clamping movement without pull down effect on the workpiece.

For the pneumatic operation are pressure booster units in the ratio 1:2 or 1:4 available.

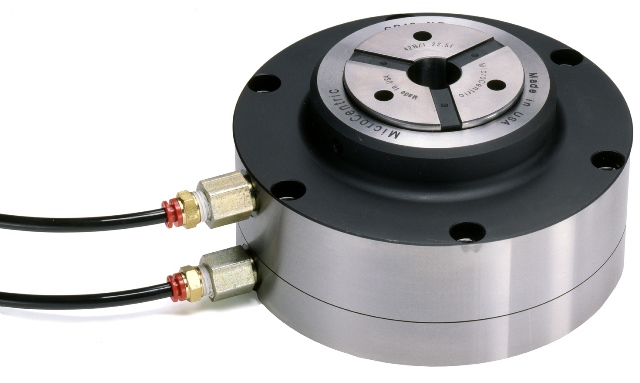

Zangenspannstock cb nrd

Specifications:

Vice type Through bore mm Clamping range mm Stroke mm Operation pressure  max. bar Clamping force max. daN Weight kg
CB65-NRD 66,0 +/- 0,5 4 35 5.510 12,5
CB100-NRD 100,0 +/- 1,0 8 35 7.950 24,8

qcc nrd2

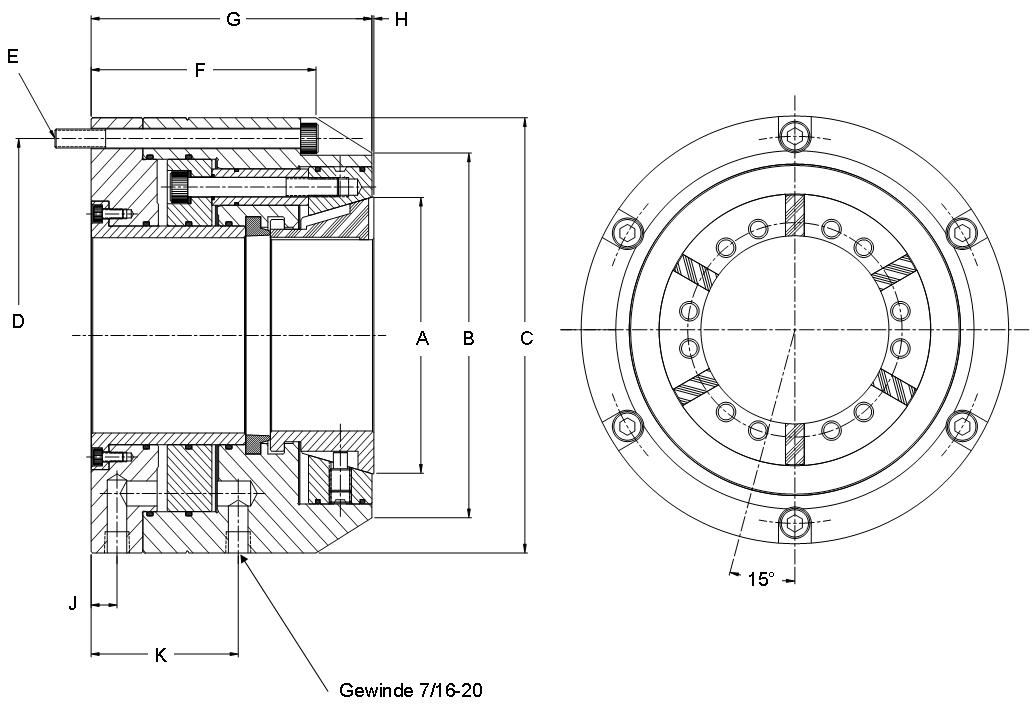

Dimensions:

Order-No. A B C D E F G H J K
CB65-NRD 98,7 145,0 164,6 147,3 M10 109,1 126,5 9,0 12,7 63,5
CB100-NRD 145,0 190,5 227,3 205,7 M10 128,1 160,0 1,0 14,7 83,8

Features:

  • Vice sizes from 65 until 100 mm through bore
  • Self-contained clamping with built in clamping cylinder which is operated hydraulically or pneumatically
  • Axially fixed collet without pull down effect guarantee an unchanged Z-Position of the workpiece while clamping
  • Through the lifetime lubrication the vices need a minimal maintenance
  • All components are hardened and ground for a high accuracy

Key features:

  • Axial fix
  • Part stop possible
  • Operation through built in clamping cylinder
  • Air / Oil connections from behind possible

Delivery contents:

  • Chuck
  • Air / Oil connections
  • Instruction Manual
