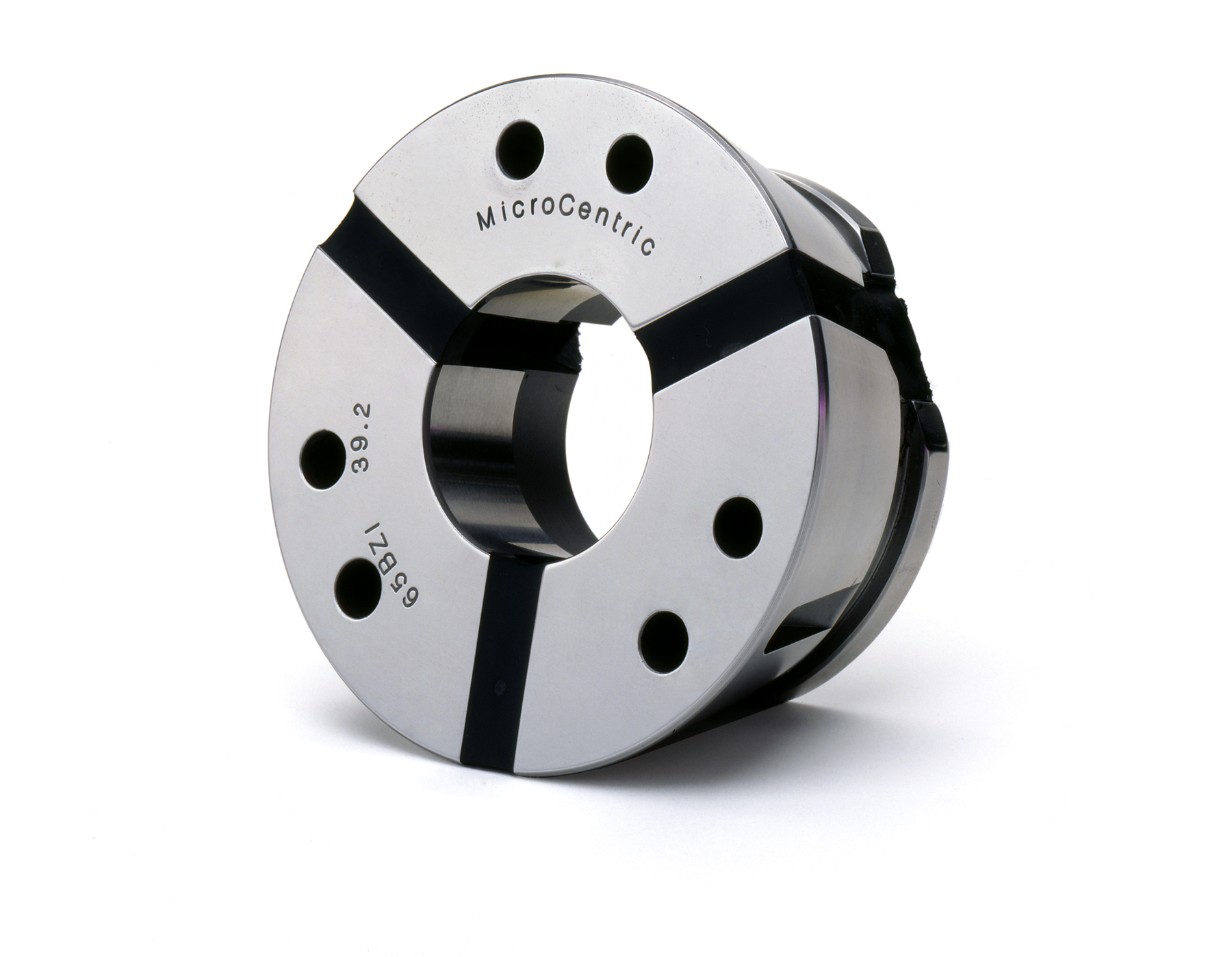

Collets SG

On technical reasons at the sizes 42 and 65 it is necessary to use collets SG with reduced nose when the clamping length is 8 mm or less. The remaining specifications are simular to collets SK.

Collets available:

Order-No. For size Number of segments Clamping bore Accuracy Range mm
SG42BZI-RSM xx,xx 42 3 Round smooth 0,010 5,0-42,0
SG42BZI-HEX xx,xx 42 3 Hexagonal smooth 0,025 5,0-36,0
SG42BZI-SQR xx,xx 42 3 Square smooth 0,025 6,0-29,0
SG65BZI-RSM xx,xx 65 3 Round smooth 0,010 5,0-66,0
SG65BZI-HEX xx,xx 65 3 Hexagonal smooth 0,025 6,0-57,0
SG65BZI-SQR xx,xx 65 3 Square smooth 0,025 6,0-44,0

xx,xx = Clamping diameter in mm
