Quick change collet vice CB-NRB, axially moved collet

At the vice series CB-NRB the collets are engaged into the piston. At operation of the integrated clamping cylinder the piston moves axially backward. Thereby the clamping head is pulled into the cone of the chuck body and result is a radial clamping movement with simultaneous pull down effect on the workpiece.

For the pneumatic operation there are pressure booster units in the ratio 1:2 or 1:4  available.

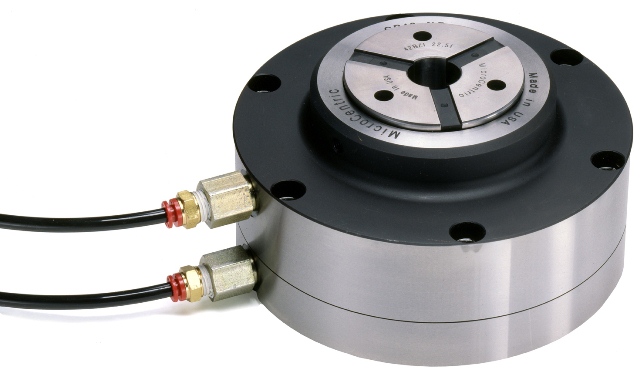

Zangenspannstock cb nrb

Specifications:

Vice type Through bore mm Clamping range mm Stroke mm Operation pressure  max. bar Clamping force max. daN Weight kg
CB42-NRB 42,0 +/- 0,5 4 35 4.280 8,5
CB65-NRB 66,0 +/- 0,5 4 35 5.510 12,5
CB100-NRB 100,0 +/- 1,0 7 35 7.950 24,8

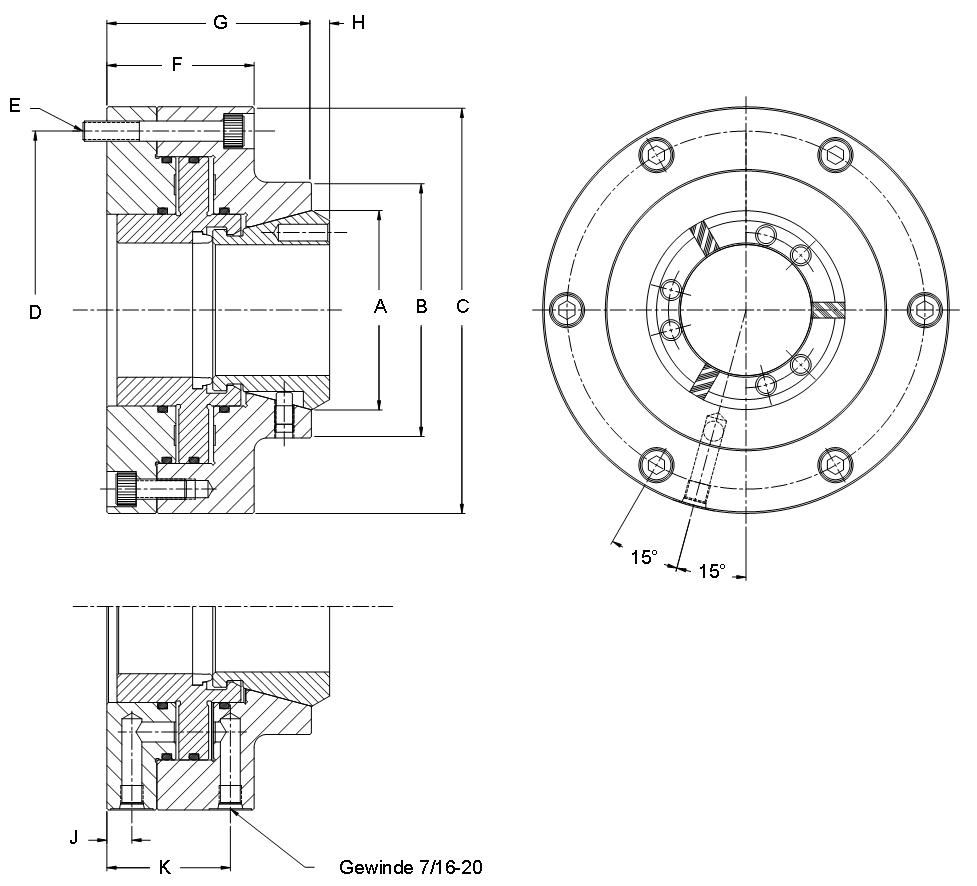

qcc nrb2

Dimensions:

Order-No. A B C D E F G H J K
CB42-NRB 79,0 108,0 177,0 161,0 M8 66,0 88,0 9,0 12,4 53,0
CB65-NRB 98,7 127,0 202,0 178,0 M10 73,0 102,0 9,0 12,4 61,0
CB100-NRB 145,0 191,0 253,0 225,0 M12 110,0 152,0 1,0 19,0 88,9

Features:

  • Vice sizes from 42 until 100 mm through bore
  • Self-contained clamping with built in clamping cylinder which is operated hydraulically or pneumatically
  • Axially moved collet with pull down effect
  • Through the lifetime lubrication the vices need a minimal maintenance
  • All components are hardened and ground for a high accuracy
  • Other sizes until 140 mm available on request

Key features:

  • Pull down effect
  • Part stop possible
  • Operation through integrated clamping cylinder
  • Air / Oil connections from behind possible

Delivery contents:

  • Chuck
  • Air / Oil connections
  • Instruction Manual
