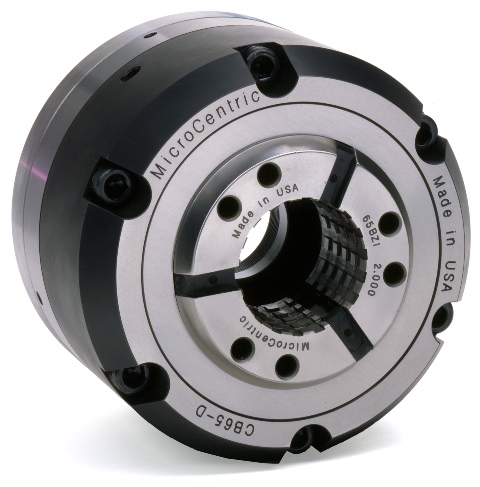

Quick change collet chuck CB-NDR, axially fixed collets on pull

At the chuck series CB-NDR the collets are engaged in a coupling in the chuck body. Through the backward movement of the drawtube the sliding sleeve with a cone is moving forward by a patented system. Thereby the radial clamping movement is performed without the pull down effect of the workpiece.

Optional an axially fixed workpiece stop can be installed in the chuck from the front. Because of that this series can be used for bar and chuck work.

Specifications:

Chuck type Through bore mm Clamping range mm Drawtube stroke mm Drawtube force max. daN Clamping force max. daN Max. Speed rpm. Weight kg
CB65-NDR 66,0 +/- 0,5 12,2 3.210 8.260 6.000 17,2
CB80-NDR 82,5 +/- 0,5 12,2 3.820 9.820 5.000 26,2

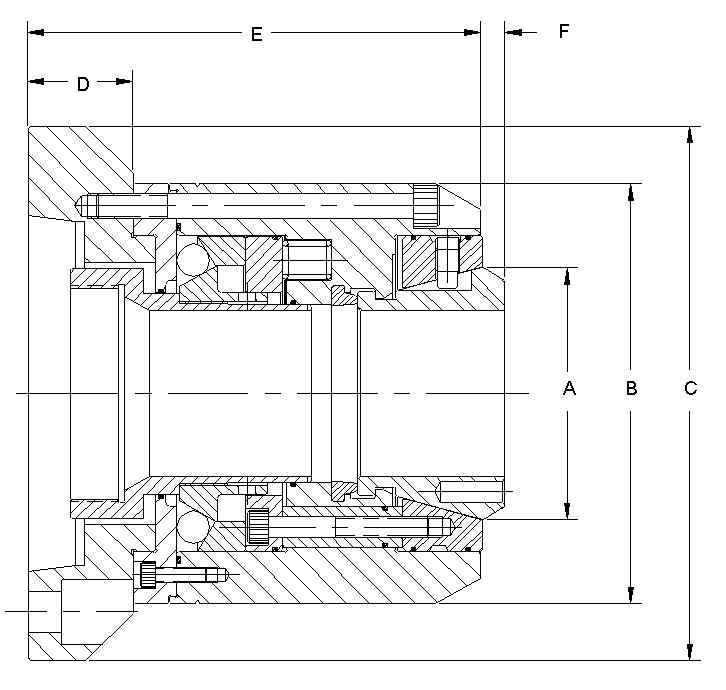

Dimensions:

Order-No. A B C D E F
CB65-NDR/140 98,7 164,6 164,6 151,8 151,8 9,0
CB65-NDR/A5 98,7 164,6 164,6 156,8 156,8 9,0
CB65-NDR/A6 98,7 164,6 164,6 170,8 170,8 9,0
CB65-NDR/A8 98,7 164,6 209,6 41,3 177,9 9,0
CB80-NDR/A6 114,3 195,6 195,6 158,6 158,6 4,6
CB80-NDR/A8 114,3 195,6 233,7 28,1 165,1 4,6

 At the chuck designation the adapter plate size is given after the slash:

  • A6 means adapter plate according to DIN ISO 702-1 Size 6 (former DIN 55026)
  • 140 means adapter plate with cylinder pilot 140 mm

 Other adapter plate sizes are available on request



Features:

  • Chuck sizes from 65 until 80 mm through bore
  • New patented system with axially fixed collet without pull down effect guarantee an unchanged Z-Position while clamping the workpiece
  • Low outer diameter and a short overall length increase the space for tools and the possible travels of the Z-Axis
  • Radial alignment screws
  • Through the lifetime lubrication the chucks need a minimal maintenance
  • All components are hardened and ground for a high accuracy
  • Part stops and part ejectors can be installed in or at the chuck
  • Maximum spindle speed 6.000 rpm.

Key features:

  • Axial fix
  • Part stop possible
  • Operation through pull

Delivery contents:

  • Chuck
  • Adapter plate
  • Drawtube connector
  • Instruction Manual
