Collets SK

Collets SK

MicroCentric Quick-Change-Collets are produced as a complete unit and they are precision ground with a close tolerance. After that the collets are separated into segments and subsequently they are reassembled through vulcanization. The used gum is a NBR-mixture which is resistant against all commercial coolants and cutting oils.

MicroCentric collets are made out of high quality alloy steel and are hardened to 56-60 HRc. The gum–metal connection has an extreme long life. The sizes 42 until 140 are available with clamping bores as round, hexagonal, square or special profile. The drilling surface can be smooth or serrated.

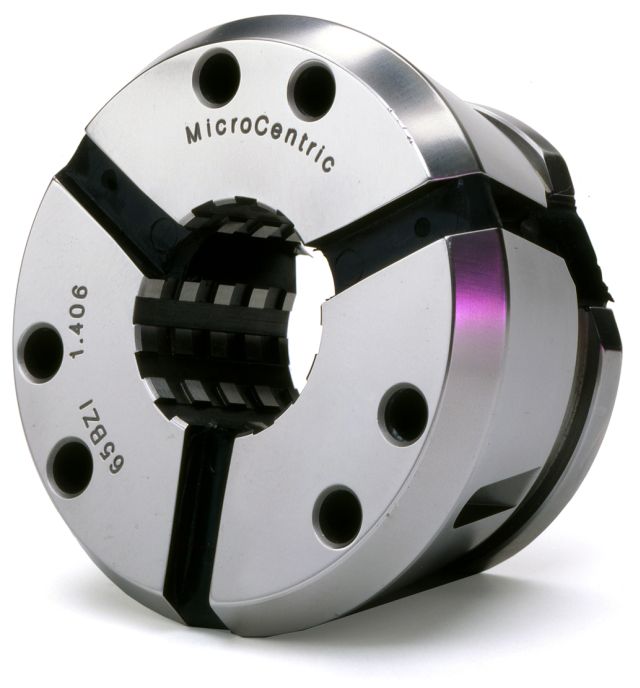

qcc sk 1

Collets available:

Order-No. For size Number of segments Clamping bore Accuracy Range mm
SK42BZI-RSM xx,xx 42 3 Round smooth 0,010 5,0-42,0
SK42BZI-RSR xx,xx 42 3 Round serrated 0,010 8,0-42,0
SK42BZI-HEX xx,xx 42 3 Hexagonal smooth 0,025 5,0-36,0
SK42BZI-SQR xx,xx 42 3 Square smooth 0,025 6,0-29,0
SK65BZI-RSM xx,xx 65 3 Round smooth 0,010 5,0-66,0
SK65BZI-RSR xx,xx 65 3 Round serrated 0,010 9,0-65,0
SK65BZI-HEX xx,xx 65 3 Hexagonal smooth 0,025 6,0-57,0
SK65BZI-SQR xx,xx 65 3 Square smooth 0,025 6,0-44,0
SK80BZI-RSM xx,xx 80 4 Round smooth 0,010 12,0-82,5
SK80BZI-RSR xx,xx 80 4 Round serrated 0,010 19,0-82,5
SK80BZI-HEX xx,xx 80 4 Hexagonal smooth 0,025 12,0-71,0
SK80BZI-SQR xx,xx 80 4 Square smooth 0,025 12,0-58,0
SK100BZI-RSM xx,xx 100 6 Round smooth 0,020 25,0-100,0
SK100BZI-RSR xx,xx 100 6 Round serrated 0,020 25,0-100,0
SK100BZI-HEX xx,xx 100 6 Hexagonal smooth 0,038 31,0-86,0
SK100BZI-SQR xx,xx 100 6 Square smooth 0,038 31,0-70,0
SK120BZI-RSM xx,xx 120 6 Round smooth 0,020 25,0-120,0
SK120BZI-RSR xx,xx 120 6 Round serrated 0,020 25,0-120,0
SK120BZI-HEX xx,xx 120 6 Hexagonal smooth 0,038 31,0-103,0
SK120BZI-SQR xx,xx 120 6 Square smooth 0,038 31,0-85,0
SK140BZI-RSM xx,xx 140 6 Round smooth 0,020 25,0-140,0
SK140BZI-RSR xx,xx 140 6 Round serrated 0,020 25,0-140,0
SK140BZI-HEX xx,xx 140 6 Hexagonal smooth 0,038 38,0-121,0
SK140BZI-SQR xx,xx 140 6 Square smooth 0,038 38,0-99,0

xx,xx = Clamping diameter in mm
